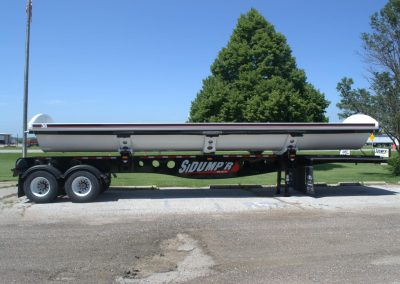

Tandem Axle

Select a Model

SDR240-49

SDR240-72

SDR238-49

No table

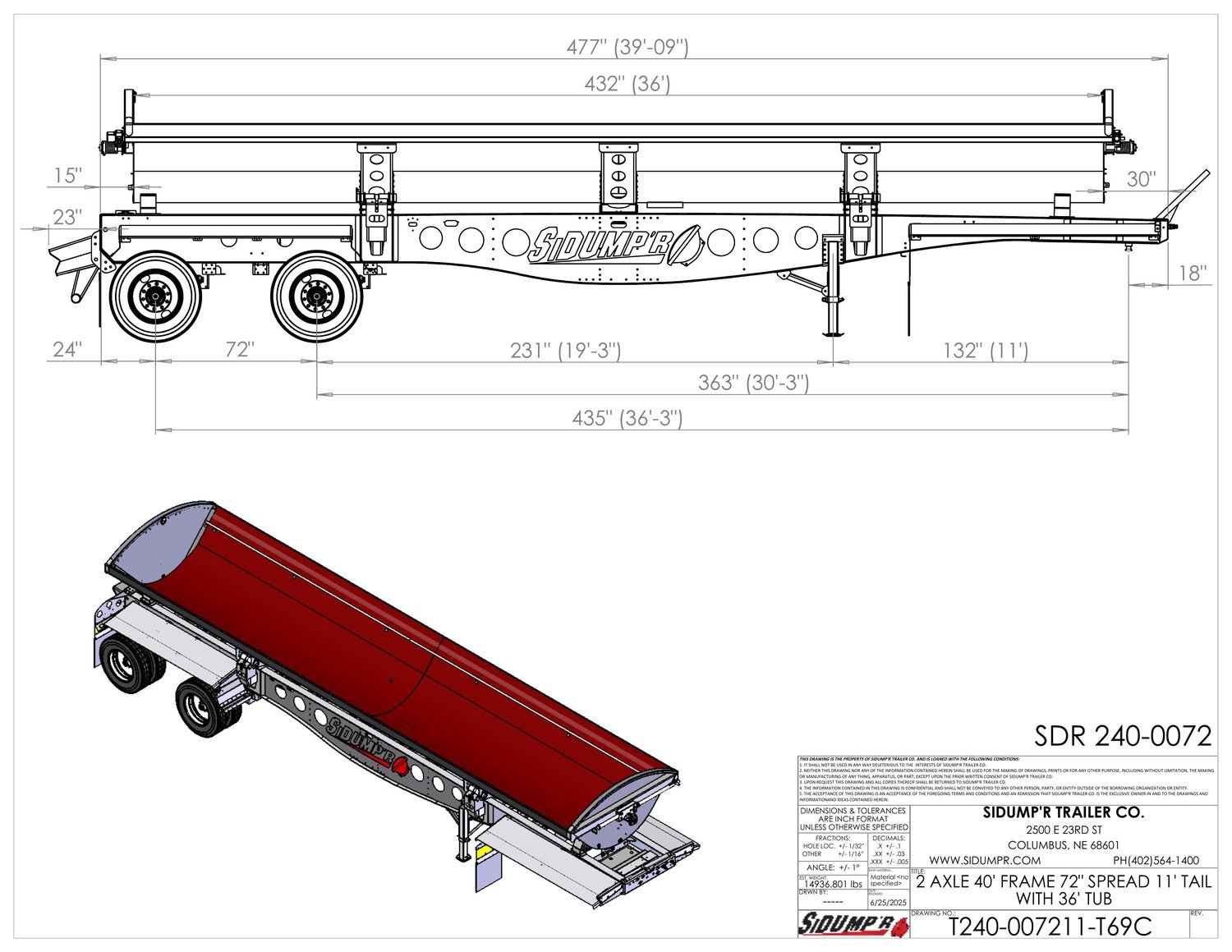

Overall Length	42 ft. –1 in. (Includes removable push block)
Frame Length	39 ft. – 9 ½ in.
King Pin – Center Last Axle	35 ft. – 3 5/16 in.
Overall Height	100 in. (129 in. in dump position)
Body	36 ft. ¼” Hardox 450 Tub (no center divide) (5 YR. Warranty against corner cracking, tub twisting & buckling)
Capacity	23 cubic yards, water-full – 31 cu. yds. heaped
Width	102”
King Pin	18 in.
Dump Angle – Unloaded Time	36 degrees – 17 second cycle time
Landing Legs	High clearance, pin type (non-load bearing)
Bumper	Bolt on push block
Cylinder	8 in. – 3 stage w/ integrated balance valve (Maintains equal pressure throughout dump cycle)
Operating Pressure	1,800 – 2,100 PSI / 40 GPM (minimum 25 gal. reservoir)
Hydraulic Valve	Directional Control Valve, w/ integrated pressure relief.
Wiring	Separate 7-way for electric/hydraulic solenoid operation to include cab. switch
Axles	Reyco 25,000 lb 5/8 in. wall 72” spacing
Suspension	Reyco AR 23 Air-Ride
Hubs	Outboard mount style hubs
Brakes	16 ½ in. x 7 in. brakes
Anti-lock	Haldex 2S/1M ABS System
Drums	Cast brake drums
Wheels	8.25 x 22.5 Steel inside Aluminum outside
Tires	11R22.5 16 ply radials
Lights	All L.E.D, Grote sealed wire system w/ 3rd tail light package
Front Fenders	H.D. Belting Material
Rear Fenders	Half mooned thermoformed
Paint	Black Frame/ Red Tub
Tarp	Aero sidekick electric tarp w/ Micro Switch
Cab Kit	Includes hydraulic fittings, directional valve switch, tarp & switch cords, manuals & water plugs for the body
Weight	16,200 lbs +/- 3%
